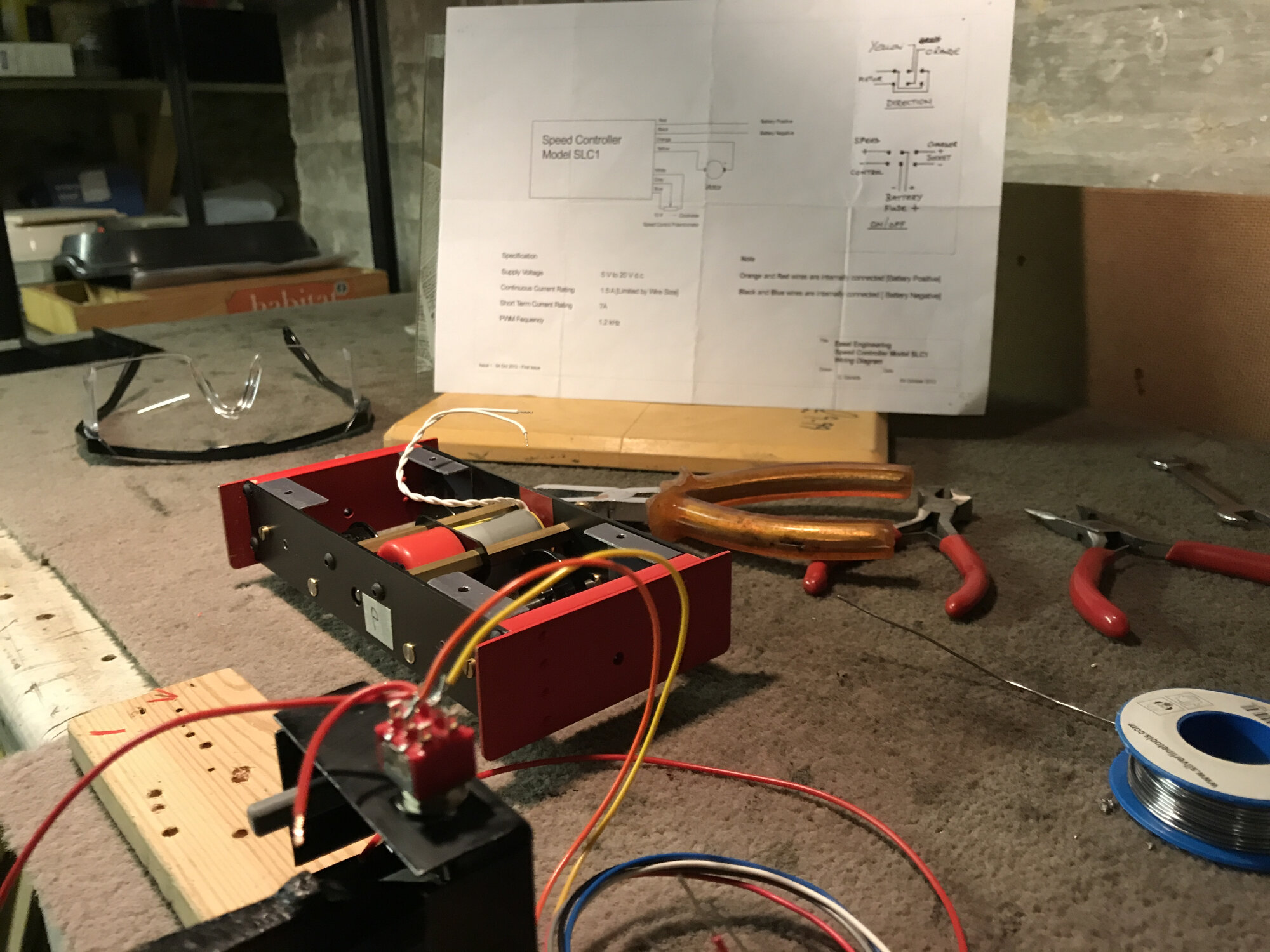

Electrical work 10 Mar 2021
Electrical work 10 Mar 2021

Work on assembling the power control circuits for new battery loco No.6 has commenced.

Electrical components were supplied by Essel Engineering Ltd along with a very good wiring diagram. The components are:

  • Speed controller potentiometerr
  • Speed controller PCB with chip installed
  • Forward/reverse switch
  • Battery on/off switch
  • Fuse

These components were assembled, wired and soldered.

Then the assembly was temporarily fitted to the loco chassis, connected to the motor and a temporary 9.6 volt supply.

Result: It works! :-)

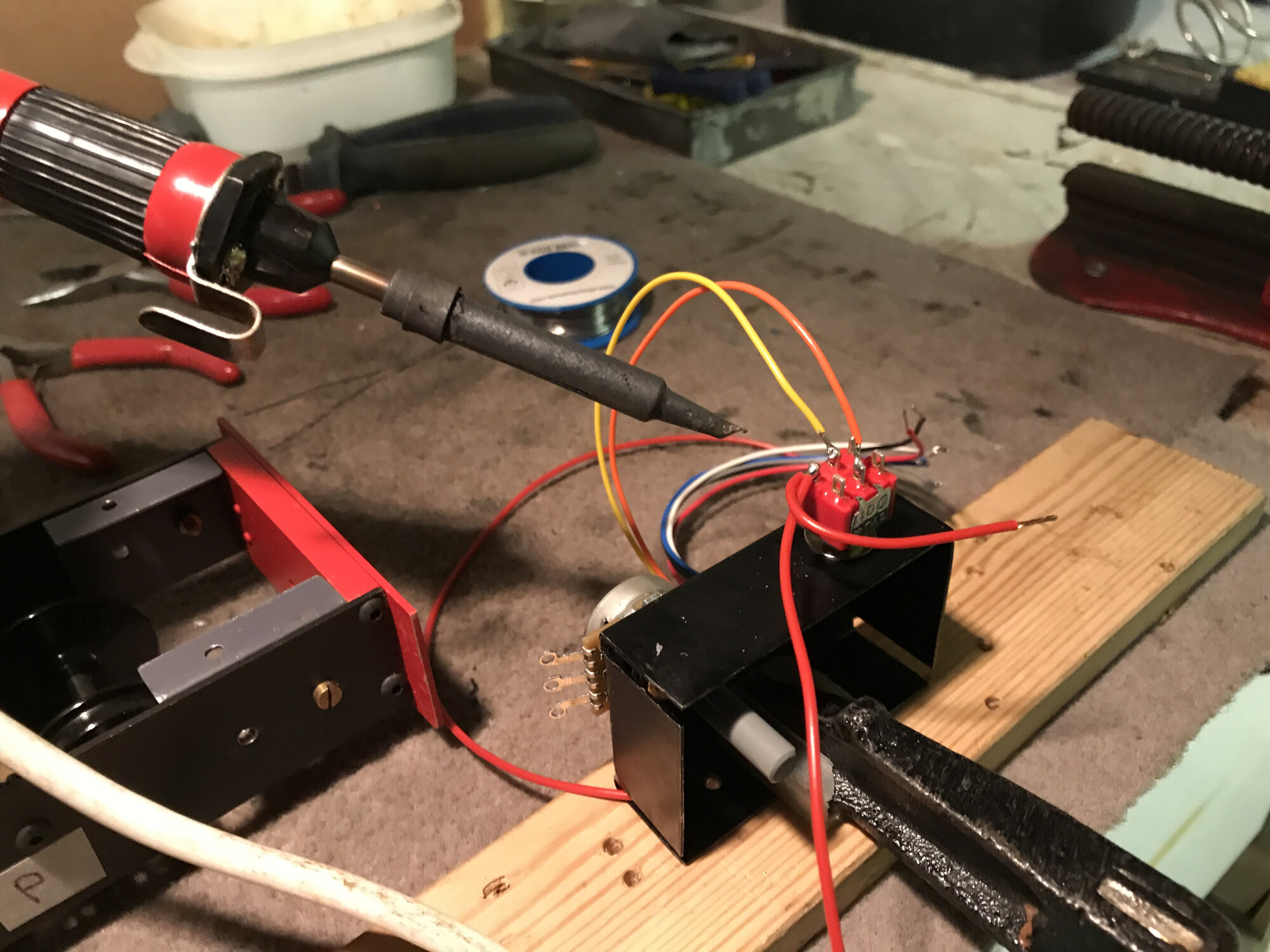

Soldering connections 10 Mar 2021
Soldering connections 10 Mar 2021
